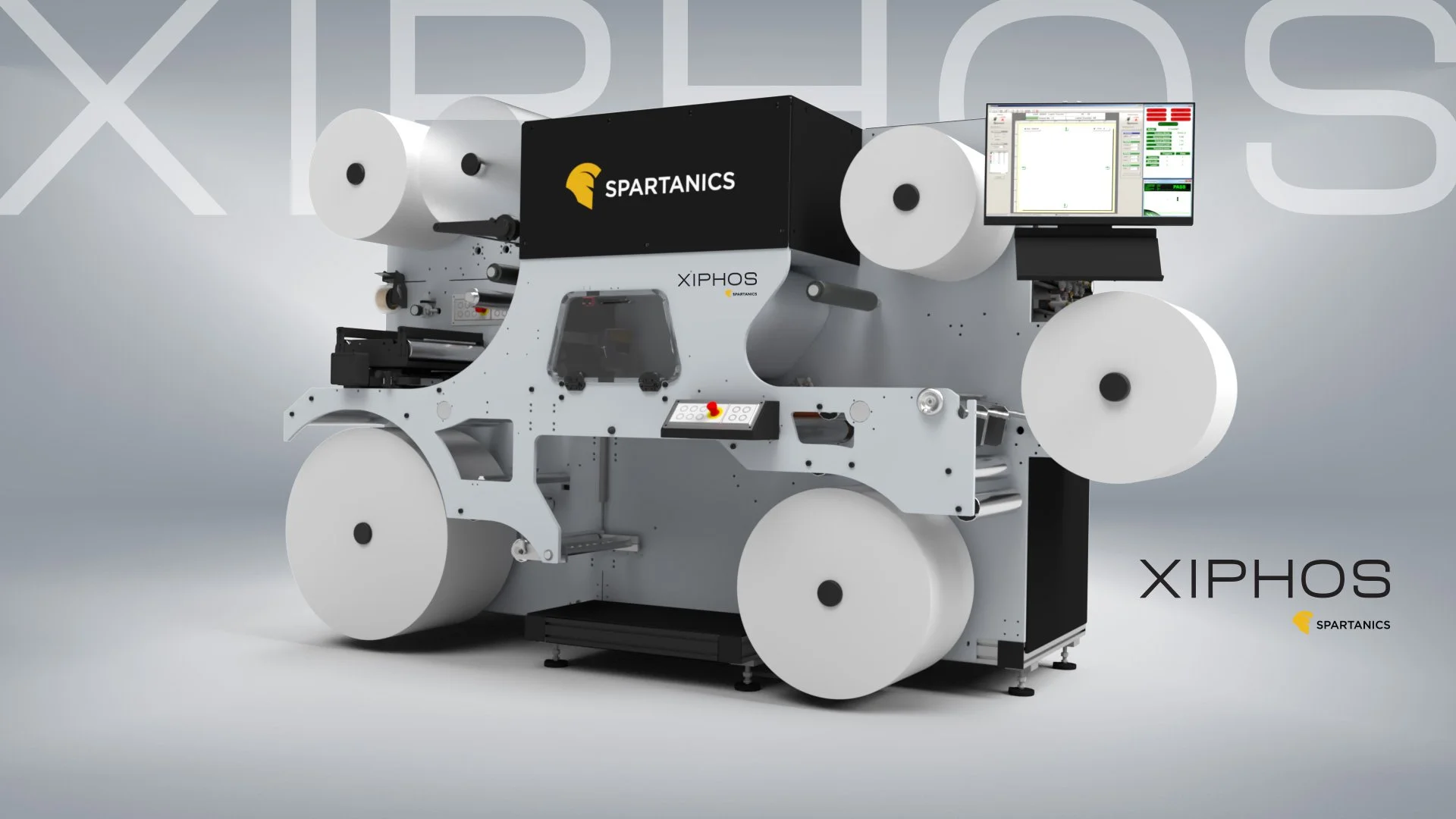

Introducing the XIPHOS Compact Laser System.
The future of label making is here.
Introducing the XIPHOS Compact Laser System. XIPHOS is a compact, affordable laser converting system integrated with Spartanics Fastline AI plug-in die line creation software and the Spartanics workflow application.
Converters looking for an affordable, user-friendly laser converting system need look no further! XIPHOS comes standard with an unwinder, rewinder, scrap rewinder, and laser die cutter that can cut unlimited label shapes. Converters can also add on options such as a web guide unit, self-wound laminate, a 450 Watt 10.2um CO2 laser high-speed option, barcode reading, and knife slitting.
Markets
Labels
Stickers
Decals
Packaging
Medical Applications
Abrasive Materials
Direct Mail
Industrial
Automotive
Gaskets
Options
Web Guide Unit
Self-Wound Laminate
450 Watt 10.2um CO2 Laser High Speed Option
Knife Slitting
Bar Code Reading

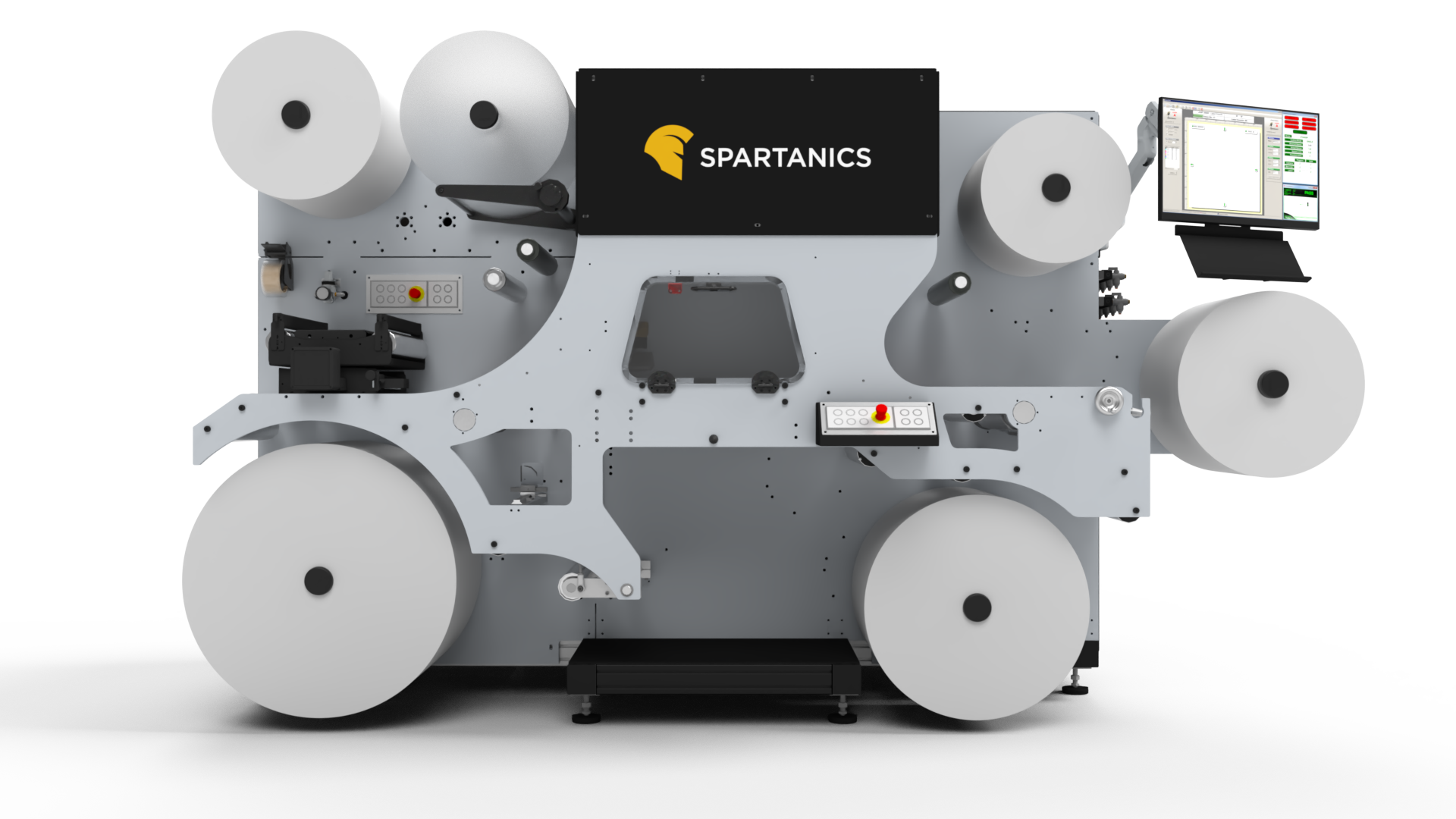

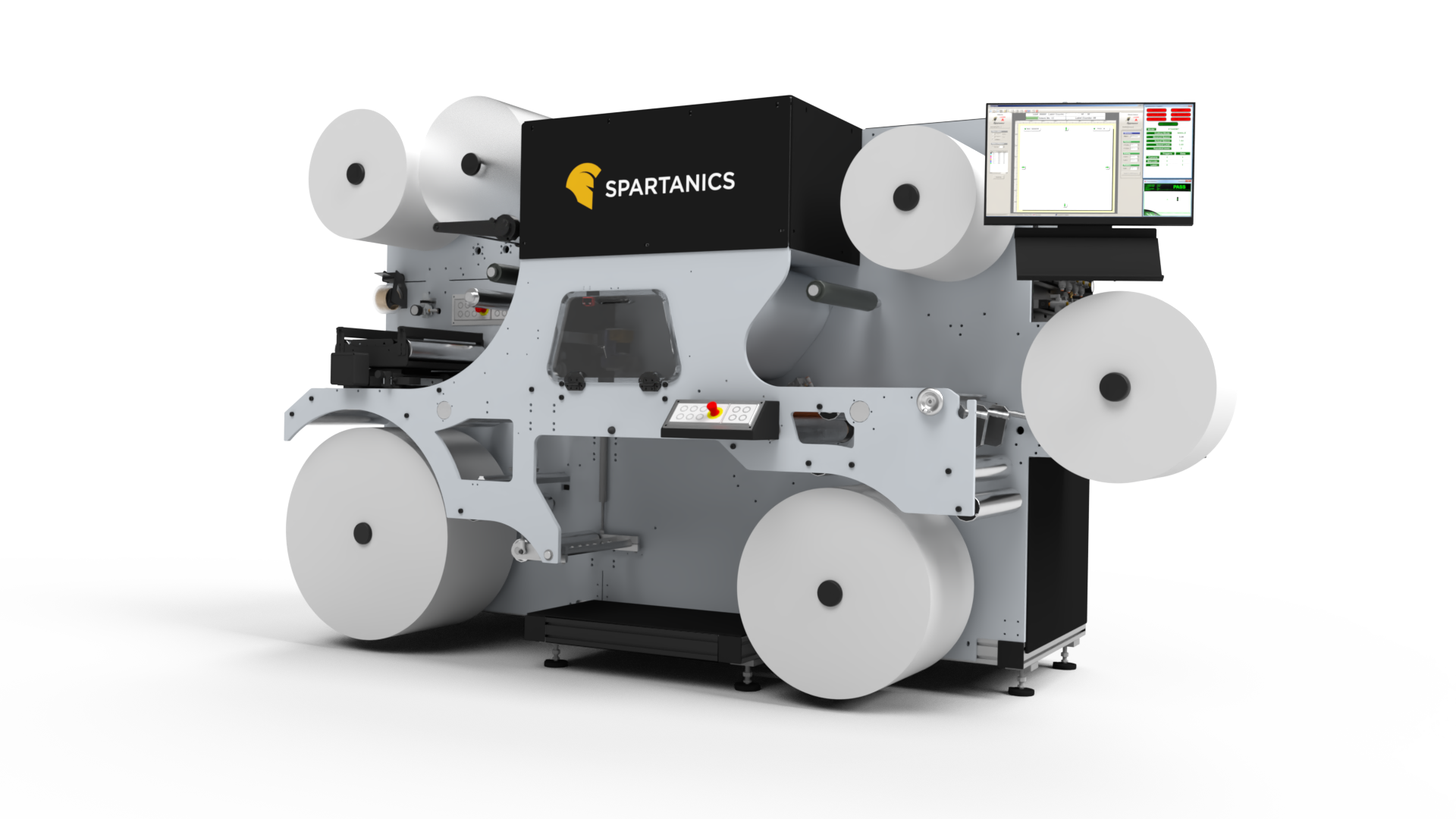

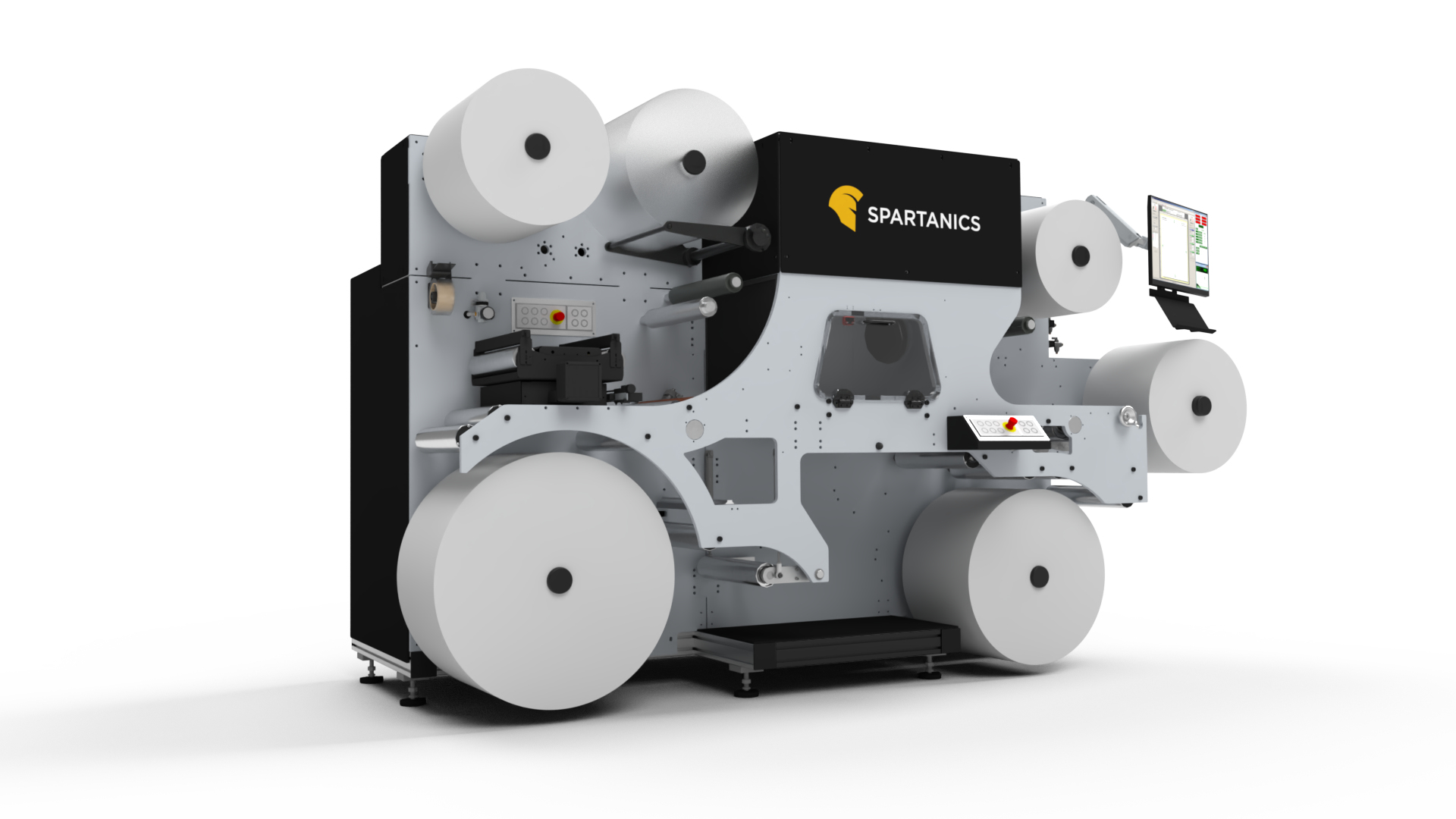

XIPHOS CONVERTING MACHINE
| Feature | Standard | Optional |
| Registration | one axis (sensor) | two axes (camera) |
| Maximum Web Speed | 40mtrs/min (130ft) | 60mtrs/min (200ft) |
| Laser Cutting Width | 320 mm (12.6”) | - |
| Maximum Unwind Diameter | 800 mm (31.5”) | - |
| Maximum Web Width | 340 mm (13.54”) | - |
| Unwind Mandrel | 76 mm (3”) | - |
| Laser Power | 250 Watt 10.2um | 450 Watt 10.2um |
| Laser Type | Sealed CO2 | - |
| Life of Laser | >18,00+ Hours | - |
| Laser Beam Positioning | Galvanometer | - |
| Power | 220V 50/60hz | 380V 3 phase 50/60hz |
Get more information on how Spartanics can provide a laser-cutting solution for your specific needs.
